Measuring range:

600 mm × 300 mm × 200 mm

​

23.62" × 11.81" × 7.87"

​

Min. display unit

Distance:

1 µm

​

Angle:

0.0001 degrees

​

Measurement accuracy

Repeatability:

​

Stage locked: ±3 µm

Stage unlocked: ±4 µm

​

Indication error:

Stage locked: ±8 µm*1

Stage unlocked: ± (10 + L/100) µm*2

​

X-axis movable range:

±100 mm ±3.94"

​

Rotation range:

±60°

​

No. of probes

2

Measuring range:

660 mm x 635 mm x 457 mm

​

25.98" x 25.00" x 17.99"

​

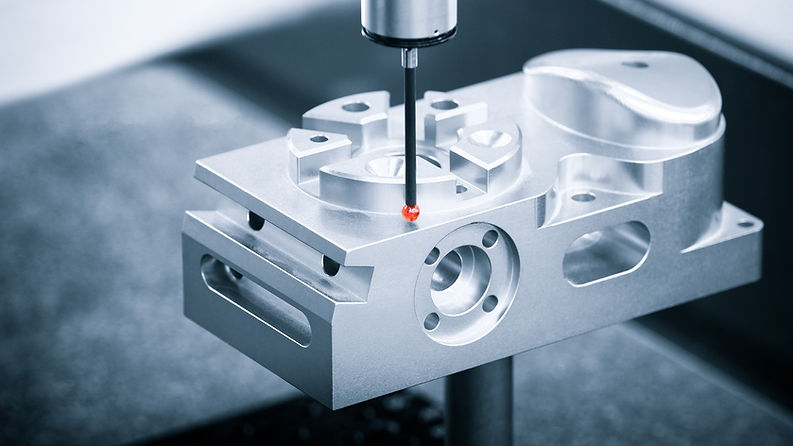

Reinshaw PH1 Probe Head

​

Renishaw TP-2 Probe/stylus kit

​

Porous graphite pre-loaded air bearings provide better lift and eliminate weight shift in motion

​

Supplied standard with Measure Manager DCC software, featuring a graphical user interface for ease of use and measurement power

​​

0.0001"/.002 mm Acu-Rite glass scales. Quick release on X-axis

​

Rotating glass screen available in either vernier or electronic digital readout

​

High precision 4" x 10" travel measuring stage with .00005"/.001mm resolution precision glass scales.

​

Duplex fiber optic surface illumination.

​

Vernier Screen Protractor reading to 5'.

​

Optional digital screen protractor with readings to 1' or .01°.

​

Helix +/- 6° via lamphouse displacement.

​

Fully useable 14" diameter screen
